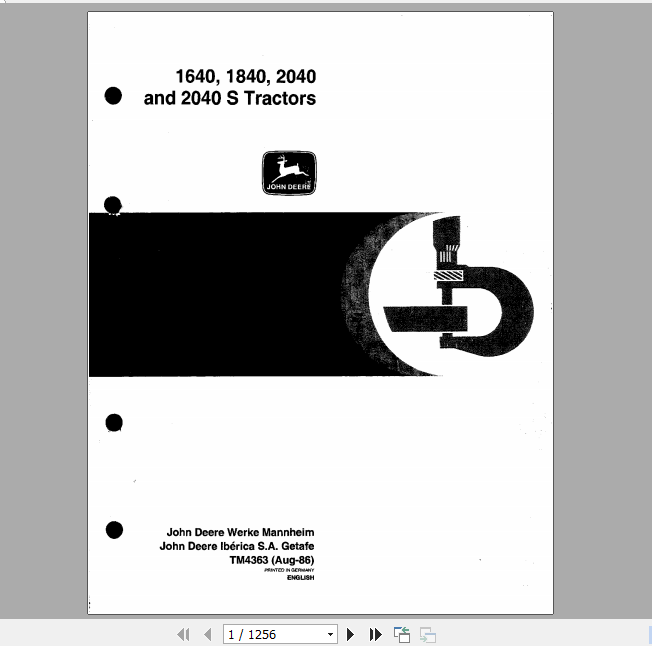

John Deere Tractors 1640 1840 2040 2040S Technical Service Manual TM4363

Format: PDF
Language: English
Brand: John Deere
Type of machine: Tractor
Type of document: Technical Service Manual
Models: 1640 1840 2040 2040S
Pages: 1256 Pages
Part Number: TM4363

Content:

SECTION 10 – GENERAL
Group 00 – Specifications and special tools
Group 05 – Pre-delivery, delivery and after-sales inspections
Group 10- Lubrication and periodic service
Group 15 – Engine and tractor tune-up
Group 20 – Tractor separation (tractors without increased lifting capacity)
Group 25 – Tractor separation (tractors with increased lifting capacity)
SECTION 20 – ENGINE
Group 00 – Specifications
Group 05 – Radiator
SECTION 30 – FUEL AND AIR INTAKE SYSTEM
Group 00 – Specifications and special tools
Group 05 – Diagnosing malfunctions
Group 10 – Fuel tank and water trap
Group 15 – Cold weather starting aids
Group 20 – Speed control linkage
Group 25 – Air cleaner
SECTION 40 – ELECTRICAL SYSTEM
Group 00 – Specifications and special tools
Group 05 – Description, diagnosing malfunctions and tests
Group 10- Wiring harnesses
Group 15 – Controls and instruments
Group 20 – Lighting system
Group 25 – Wiring diagrams
Group 30 – Starting motor
Group 35 – Alternator
SECTION 50 – POWER TRAIN
Group 00 – Specifications and specialtools
Group 05 – Description, operation and lubricating system
Group 10 – Clutch operating linkages
Group 15- Engine clutches
Group 20 – Hi-Lo shift unit
Group 25 – Creeper transmission
Group 30 – Transmission shift linkage
Group 35 – Synchronized transmission and transmission oil pump
Group 40 – Collar shift transmission and transmission oil pump
Group 45 – Differential
Group 50- Final drives
Group 55 – Independent PTO
Group 60 – Continuous-running PTO
Group 61 – Front PTO
Group 65 – Mechanical front wheel drive
SECTION 60 – STEERING SYSTEM AND BRAKES
Group 00 – Specifications and special tools
Group 05 – Hydrostatic steering (operating pressure: 12000 kPa; 120 bar; 1740 psi)
Group 06 – Hydrostatic steering (operating pressure: 15000 kPa; 150 bar; 2180 psi)
Group 10 – Power steering
Group 15 – Manual steering
Group 20 – Brakes
SECTION 70 – HYDRAULIC SYSTEM
Group 00 – Specifications and special tools
Group 05 – Description, diagnosing malfunctions and pressure tests
Group 10 – Oil reservoir, filter, valves and oil cooler
Group 15 – Hydraulic pumps
Group 20 – Rockshaft
Group 21 – Front hitch
Group 25 – Selective control valves (spool type)
Group 30 – Selective control valves (poppet valve type)
Group 35 – Hose couplers
Group 40 – Remote cylinder
Group 45 – Selective control valves (for tractors manufactured in Spain)
SECTION 80 – MISCELLANEOUS
Group 00 – Specifications and special tools
Group 05 – Front axle
Group 10 – Belt pulley
Group 15 – Front and rear wheels
Group 20 – Axla trailer hitch
SECTION 90 – OPERATOR’S CAB
Group 00 – Specifications and special tools
Group 05 – Air conditioning system
Group 10 – Cab ventilation and heating
Group 15 – Operator’s seats
Group 20 – OPU cab
Group 25 – SG2 cab
Group 30 – Roll guard
